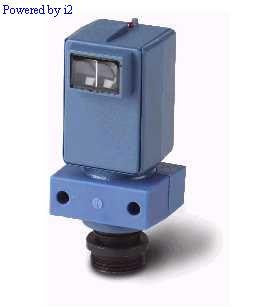

Cutler Hammer 1355A-6503

Cutler Hammer 1355A-6503 Details:

• Directory:: CIS
• Commerce Sector:: Construction Materials
• Industry:: Electrical
• Commodity Code:: 4800
• Commodity Description:: Controls - Photo Cells
• Noun:: Proximity Switch
• UPC:: 78211410696
• Item Number:: 10696
• Catalog Number:: 1355A-6503
• :
• UNSPSC:: 39121528
• Image Location:: Proximity Switch Image
• Model:: 55
• Type:: DIFFUSE REFLECTIVE
• Operating Voltage:: 20 TO 264 VAC AT 50/60 HZ, 15 TO 30 VDC
• Load Current:: 300 MILLIAMPERE
• Sensing Position:: SIDE
• Sensing Distance:: 10 INCH
• Response Time:: 10 MILLISECOND
• Output Configuration:: NPN/VMOS
• Operating Mode:: LIGHT
• Field of View:: 1 INCH DIA AT 10 INCH
• Connection Type:: 3 PIN MINI CONNECTOR
• Construction:: RECTANGULAR SWIVEL THREADED BASE
• Body Material:: NORYL[R]
• Operating Temperature:: -40 TO 158 DEG F
• Enclosure:: NEMA 1/3/4/6/12/13
• Approval:: UL, CSA
• Additional Information:: SIZE 1.64 INCH WIDTH X 1.62 INCH DEPTH X 3.19 INCH HEIGHT
• ::
