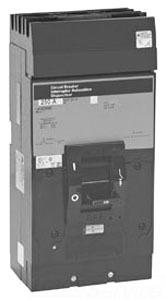

Square D / Schneider Electric LA36300V

Square D / Schneider Electric LA36300V Specifications:

• CLASS 655/660/670/830 I-LINE[R] PANELBOARD/SWITCHBOARD USED ON
• UL
• CSA APPROVAL
• POWER DISTRIBUTION APPLICATION
• 240/480/600 VAC AT 50/60 HZ
• 480 VAC STAR/277 VAC AT 50/60 HZ
• 600 VAC STAR/347 VAC AT 50/60 HZ (UL/CSA/NOM)
• 240/415 VAC AT 50/60 HZ (IEC)
• 250 VDC VOLTAGE RATING
• 42 KILOAMPERE AT 240 VAC
• 30 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC
• 22 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM)
• 20 KILOAMPERE AT 415 VAC (IEC)
• 10 KILOAMPERE AT 250 VDC INTERRUPTING RATING
• 300 AMPERE CURRENT RATING
• 3 POLE(S)
• 1500 TO 3000 AMPERE TRIP SETTING
• FRAME TYPE L
• MOUNTING TYPE PLUG ON
• SIZE 6 INCH W X 5.84 INCH D X 11 INCH H
• TRIPPING METHOD THERMAL MAGNETIC
• TERMINAL WIRE SIZE (1) 1 AWG TO 600 KCMIL/(2) 1 AWG TO 250 KCMIL (ALUMINUM/COPPER)
• WITH VLSI BLADE
• LA MODEL Molded Case Circuit Breakers from Square D / Schneider Electric
