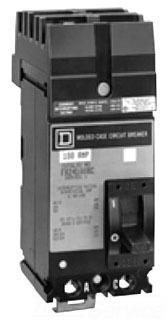

Square D / Schneider Electric FA26020AC102

Square D / Schneider Electric FA26020AC102 Specifications:

• CLASS 650/734/820 I-LINE[R] PANELBOARD/SWITCHBOARD USED ON
• UL
• CSA APPROVAL
• POWER DISTRIBUTION APPLICATION
• 240/480/600 VAC AT 50/60 HZ
• 480 VAC STAR/277 VAC AT 50/60 HZ
• 600 VAC STAR/347 VAC AT 50/60 HZ (UL/CSA/NOM)
• 240/415 VAC AT 50/60 HZ (IEC)
• 250 VDC VOLTAGE RATING
• 25 KILOAMPERE AT 240 VAC
• 18 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC
• 14 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM)
• 10 KILOAMPERE AT 415 VAC (IEC)
• 10 KILOAMPERE AT 250 VDC INTERRUPTING RATING
• 20 AMPERE CURRENT RATING
• 2 POLE(S)
• 275 TO 600 AMPERE TRIP SETTING
• I-LINE[R] BRAND
• FRAME TYPE F
• MOUNTING TYPE PLUG ON
• SIZE 3 INCH W X 4.13 INCH D X 6 INCH H
• TRIPPING METHOD THERMAL MAGNETIC
• TERMINAL WIRE SIZE 14 TO 4 AWG (COPPER)
• 12 TO 4 AWG (ALUMINUM)
• WITH RED/BLUE PHASE
• 120/208/240 VAC SHUNT TRIP
• FA MODEL Molded Case Circuit Breakers from Square D / Schneider Electric
